Calculate Estimated Luminance in Home Assistant

The motivation

On the one hand, I wanted to switch the motion-sensor lights based on whether it was dark enough. If it's bright, don't turn them on.

On the other hand, I didn't want to buy a separate hardware (brightness sensor) for $10 for this function, so I figured out something else instead.

The Home Assistant knows by default where the sun is, and you can get the current cloud coverage in percentage from an external provider.

So it was a given that I would write a template for this, since the Home Assistant can do everything :)

How it works?

This template sensor calculates the approximate light in lux (LX) based on two factors:

Height of the sun: Uses the elevation angle (degrees) of the sun. If this is negative (night), the base luminance is 0; otherwise it is scaled linearly (height × 1000).

Cloud coverage: Provided by met.no as a percentage.

The final luminance base is the product of lux (from height) and the cloud coverage, rounded to the nearest integer.

Note: It has been optimized to use with met.no.

Copy and paste the code below in your configuration.yaml file:

template:
  - sensor:
      - name: "Estimated Luminance"
        unit_of_measurement: "lx"
        state: >
          {% set elevation = state_attr('sun.sun', 'elevation') | float(0) %}
          {% set cloud_coverage = state_attr('weather.met_no_home', 'cloud_coverage') | float(100) %}
          {% set base_lux = 0 if elevation < 0 else elevation * 1000 %}
          {% set cloud_factor = 1 - (cloud_coverage / 100 * 0.5) %}
          {{ (base_lux * cloud_factor) | round(0) }}

Remember to restart your Home Assistant after saving the file.

The entity will be "sensor.estimated_luminance", you can use it in your automation.

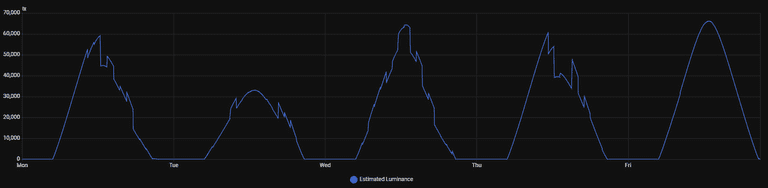

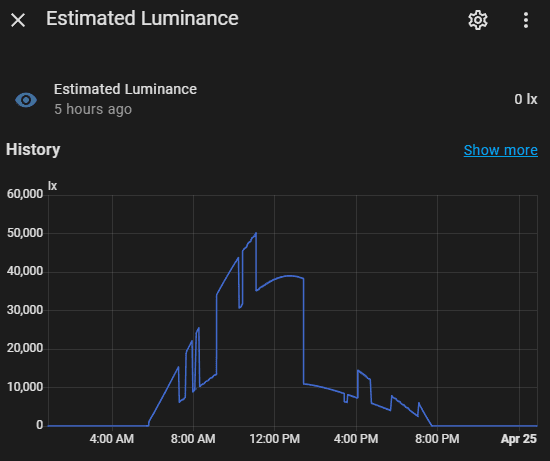

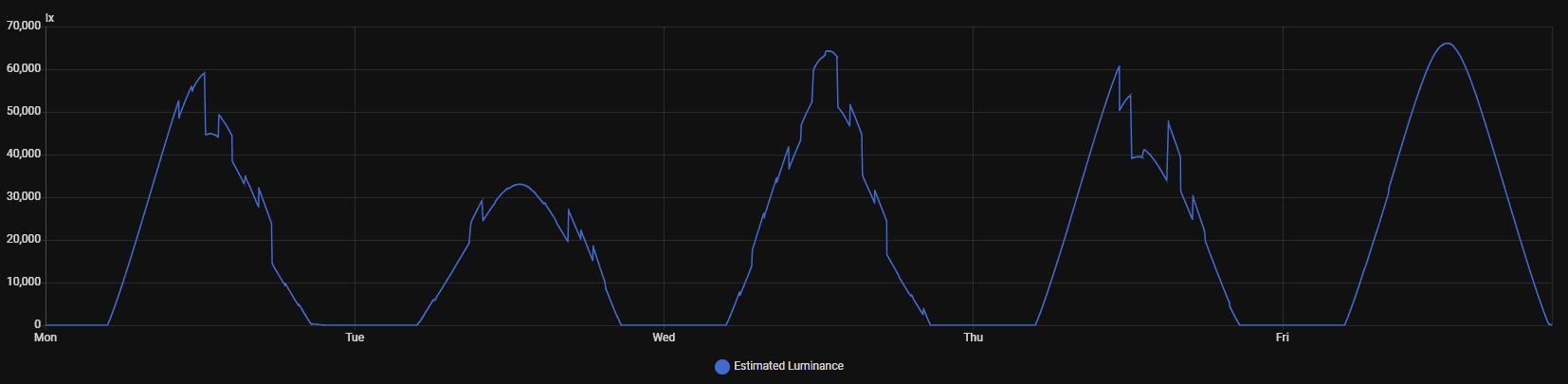

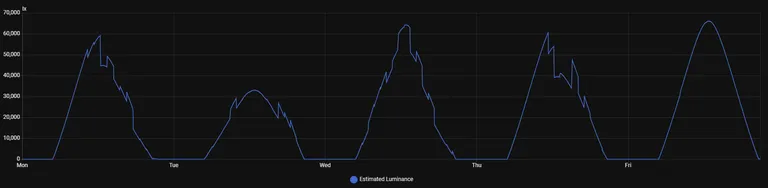

It will look like this:

I hope it was useful for You. :)
